MicroShield 16 Mesh Max Disperse

Wide-range dispersion for safe, effective less-lethal large-wildlife control.
SKU: IP16M
Select Option ▼
Qty:
For MSDS Go to Downloads Tab

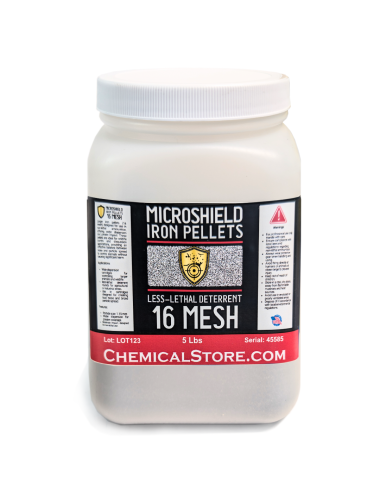

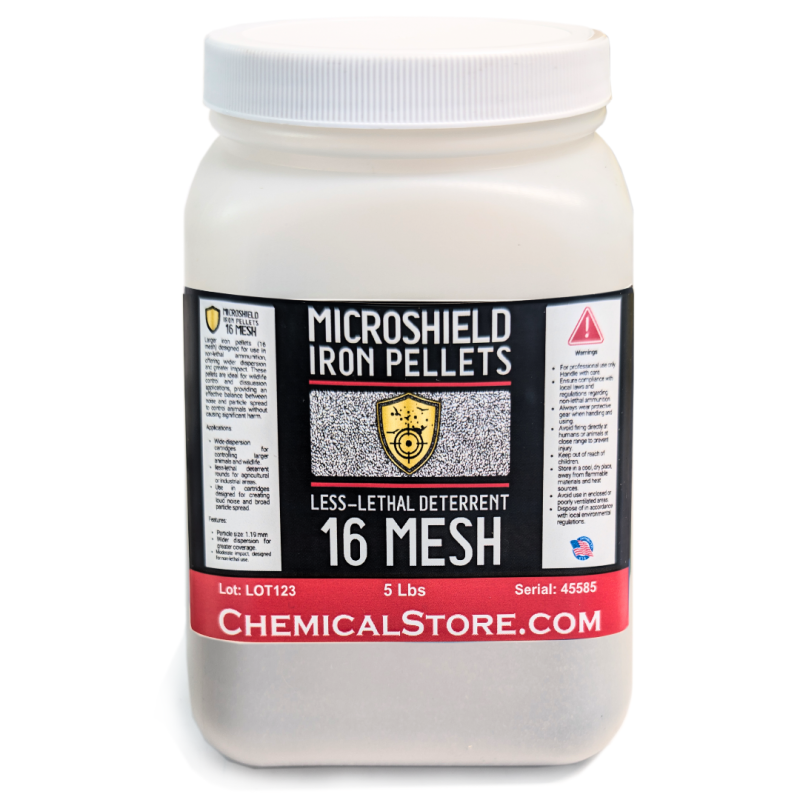

MicroShield Max Disperse 16


MicroShield Max Disperse 16 is designed to deliver broad, safe, and effective wildlife control in various settings. These larger iron pellets, with a 16-mesh particle size, are engineered to disperse over a wide area, creating noise and low-impact deterrence suitable for agricultural and industrial applications. Built from a low-carbon magnesium steel alloy, each pellet measures approximately 0.8 to 1 millimeter in diameter, with about 95% of the particles forming individual spheres, while the remainder are spheroidal clusters. With an apparent density of 4.4 g/cc, this product is dependable for less-lethal control, helping manage wildlife presence safely and effectively.


Key Features

  • 16 mesh-sized iron pellets for wide-area coverage
  • Low-impact and less-lethal deterrence for wildlife control
  • 0.8 to 1 mm diameter for controlled dispersion
  • Constructed with low-carbon magnesium steel alloy
  • Reliable for use in agricultural and industrial settings
  • Apparent density of 4.4 g/cc for effective dispersal

Product Specifications

Material Low-carbon magnesium steel alloy
Mesh Size 16
Pellet Diameter 0.8 - 1 mm
Apparent Density 4.4 g/cc
Primary Use Wildlife control in agricultural/industrial settings

Perfect for agricultural professionals, industrial site managers, wildlife control agencies, environmental and conservation agencies, and rural facility managers.

16 mesh iron particles are optimized to deliver broader coverage with heavier particles (approx. 1.19 mm), achieving an enhanced deterrent effect over larger areas. The larger particle size maintains momentum over increased distances, ideal for settings where extended range is beneficial. Configurations are available across multiple shotgun gauges, ensuring consistent performance across both close and mid-range applications.

With careful calibration, each load type—light, standard, and heavy—incorporates powder charges specifically adjusted to produce controlled dispersal and impact, maximizing deterrence without harm. Below is a detailed table of specifications per gauge, suited to cover effective ranges as specified:

Bird Deterrent Loads Using 16 Mesh Iron Particles Across Various Gauges

Gauge Load Type Iron Particle Load Powder Charge Estimated Velocity Effective Range
12 Gauge Light Deterrent 25 g (0.88 oz) 12-14 gr (0.27-0.32 oz) 200-250 m/s (656-820 ft/s) 10-20 meters (33-66 ft)
  Standard Deterrent 30 g (1.06 oz) 14-16 gr (0.32-0.37 oz) 250-300 m/s (820-984 ft/s) 20-30 meters (66-98 ft)
  Heavy Deterrent 35 g (1.23 oz) 16-18 gr (0.37-0.42 oz) 300-350 m/s (984-1148 ft/s) 30-40 meters (98-131 ft)
16 Gauge Light Deterrent 20 g (0.71 oz) 10-12 gr (0.23-0.27 oz) 180-230 m/s (591-755 ft/s) 10-20 meters (33-66 ft)
  Standard Deterrent 24 g (0.85 oz) 12-14 gr (0.27-0.32 oz) 230-280 m/s (755-919 ft/s) 20-30 meters (66-98 ft)
  Heavy Deterrent 28 g (0.99 oz) 14-16 gr (0.32-0.37 oz) 280-330 m/s (919-1083 ft/s) 30-40 meters (98-131 ft)
20 Gauge Light Deterrent 18 g (0.63 oz) 8-10 gr (0.18-0.23 oz) 170-220 m/s (558-722 ft/s) 10-20 meters (33-66 ft)
  Standard Deterrent 20 g (0.71 oz) 10-12 gr (0.23-0.27 oz) 220-270 m/s (722-886 ft/s) 20-30 meters (66-98 ft)
  Heavy Deterrent 22 g (0.78 oz) 12-14 gr (0.27-0.32 oz) 270-320 m/s (886-1050 ft/s) 30-40 meters (98-131 ft)
28 Gauge Light Deterrent 15 g (0.53 oz) 6-8 gr (0.14-0.18 oz) 160-210 m/s (525-689 ft/s) 10-20 meters (33-66 ft)
  Standard Deterrent 18 g (0.63 oz) 8-10 gr (0.18-0.23 oz) 210-260 m/s (689-853 ft/s) 20-30 meters (66-98 ft)
  Heavy Deterrent 20 g (0.71 oz) 10-12 gr (0.23-0.27 oz) 260-310 m/s (853-1017 ft/s) 30-40 meters (98-131 ft)

Notes on Each Gauge:

  1. 12 Gauge: Best suited for moderate to heavy deterrent loads due to its higher capacity for both powder and particle loads, making it effective at longer ranges.
  2. 16 Gauge: A versatile option that offers a good balance between spread and range. Common in European hunting and bird deterrent contexts.
  3. 20 Gauge: Known for being lighter and easier to handle, making it suitable for closer-range deterrent applications.
  4. 28 Gauge: Ideal for short-range deterrent due to its lower recoil and capacity, typically for distances under 30 meters.

Important Considerations

  • Testing and Customization: Load performance can vary based on powder type, shell type, and even environmental conditions. Testing in a controlled environment is essential.
  • Safety First: Always consult a reloading manual and verify with experts, especially when using alternative materials like fine iron particles.

This table serves as a starting point; precise adjustments may be necessary depending on the equipment and specific needs. For more details on load specifications, consult reputable reloading sources or professional guidance.
